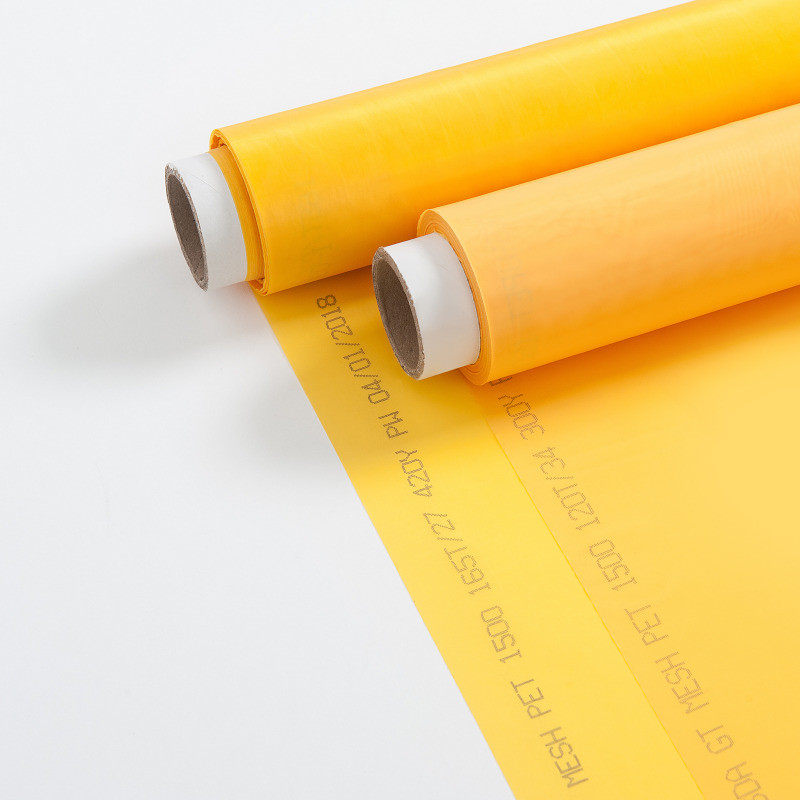

Woven by monofilament Yarn/threads, polyester screen printing mesh is seen wide applications in different industrial printing, such as glass printing, graphic printing, ceramic printing, paper printing, circuited board printing, plastics, and packaging printing.
PFM SCREEN has been dedicating herself to research, development, and production of high-quality polyester printing mesh since 1987, importing Swiss Weave Looms and German Reeds to produce mono-filament polyester printing mesh, other than equipment, we also import quality yarns to weave mesh; Our trained workers, together with advanced machines, equipment, can weave high-quality printing mesh; By improving our quality, we also are thinking of ways to reduce costs, so we can give our clients' lower price to reduce their production cost.
| Mesh count diameter (mesh/cm/μm) | Mesh count (mesh/inches) | Weave | Aperture (μm) | Thread diameter (μm) | Opening (%) | Thickness (μm) | Thickness tolerance (± μm) | Theoretical ink (cm3/m2) | Weight (g/m2) |
| 13 (T)-150PW (SL) | 33 | 1:1 | 619 | 150 | 64 | 300 | 14 | 128 | 60 |
| 21-80PW (S) | 55 | 1:1 | 296 | 80 | 69 | 120 | 9 | 79 | 35 |
| 21-150PW (SL) | 55 | 1:1 | 326 | 150 | 46 | 260 | 14 | 118 | 121 |
| 24-100PW (T) | 60 | 1:1 | 316 | 100 | 57 | 136 | 11 | 65 | 81 |
| 28-140PW (SL) | 70 | 1:1 | 217 | 140 | 40 | 195 | 13 | 76 | 125 |
| 32-55PW (S) | 81 | 1:1 | 257 | 55 | 67 | 103 | 6 | 67 | 28 |
| 32-64PW (S) | 81 | 1:1 | 248 | 64 | 63 | 95 | 6 | 56 | 32 |
| 32-100PW (T) | 81 | 1:1 | 212 | 100 | 45 | 165 | 8 | 73 | 75 |
| 36-90PW (T) | 92 | 1:1 | 183 | 90 | 44 | 150 | 8 | 65 | 68 |
| 39-55PW (S) | 100 | 1:1 | 177 | 55 | 56 | 88 | 6 | 55 | 30 |
| 40-80PW (T) | 103 | 1:1 | 166 | 80 | 44 | 133 | 7 | 59 | 60 |
| 43-80PW (T) | 110 | 1:1 | 149 | 80 | 41 | 130 | 7 | 53 | 64 |
| 47-45PW (S) | 120 | 2:2 | 166 | 45*2 | 61 | 80 | 6 | 42 | 40 |
| 47-55PW (S) | 120 | 1:1 | 152 | 55 | 51 | 88 | 6 | 48 | 34 |
| 48-70PW (T) | 122 | 1:1 | 133 | 70 | 41 | 115 | 6 | 47 | 55 |
| 53-45PW (S) | 135 | 2:2 | 143 | 45*2 | 57 | 79 | 7 | 41 | 46 |
| 53-55PW (S) | 135 | 1:1 | 133 | 55 | 50 | 86 | 6 | 42 | 40 |
| 54-64PW (T) | 137 | 1:1 | 115 | 64 | 39 | 100 | 5 | 39 | 51 |
| 54-70PW (HD) | 137 | 1:1 | 109 | 70 | 35 | 116 | 6 | 40 | 62 |
| 61-64PW (T) | 155 | 1:1 | 90 | 64 | 31 | 101 | 5 | 30 | 58 |
| 64-55PW (S) | 160 |
